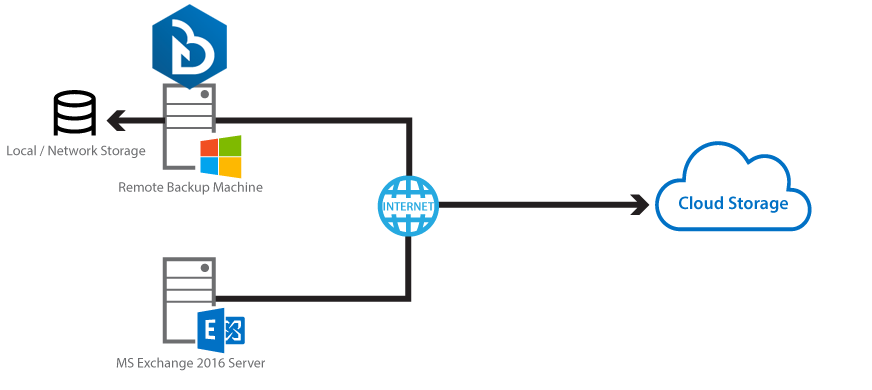

5 Mail-Level Backup and Restore for a Standalone Exchange Server thru a Remote Machine

5.1 Create Mail Level Backup Set

5.1.1. Click the Backup Sets icon on the main interface of CloudBacko Pro.


5.1.2. Create a new backup set by clicking the “+” icon next to Add new backup set.

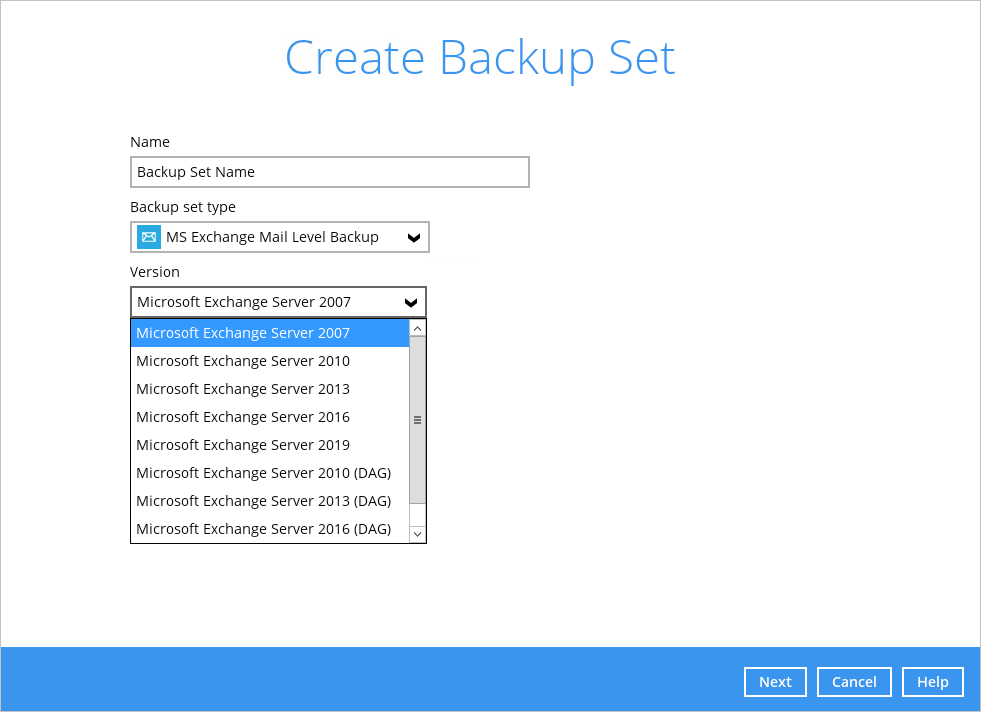

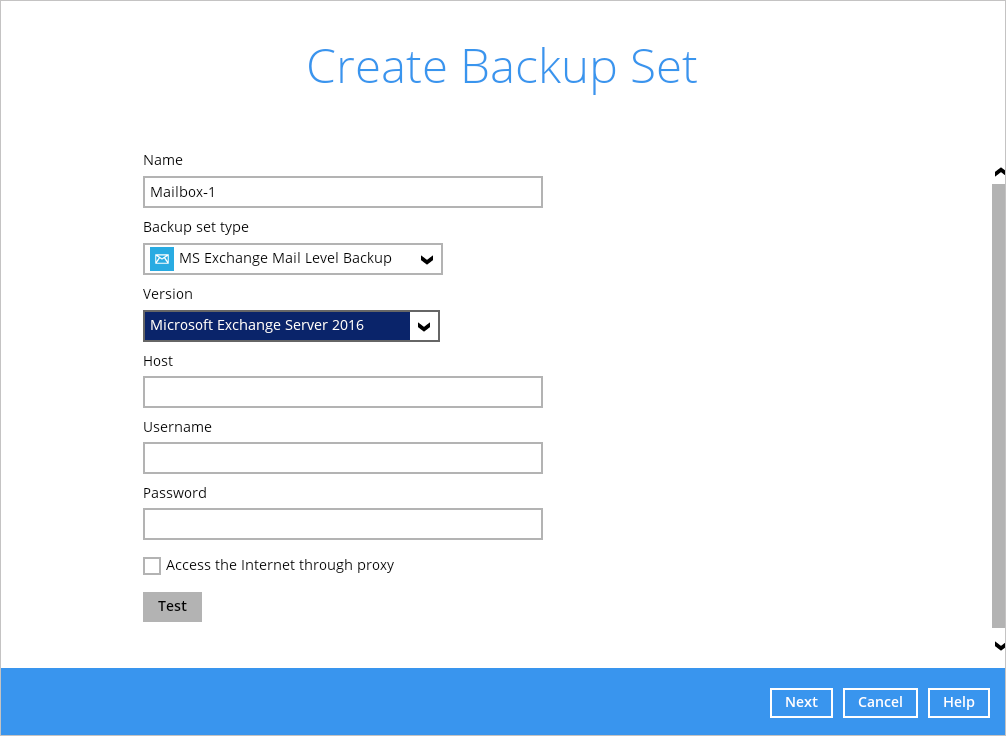

5.1.3. Select the Backup set type as MS Exchange Mail Level Backup.

  • Name your new backup set.
  • Select from the following version:
    • Microsoft Exchange Server 2013
    • Microsoft Exchange Server 2016
    • Microsoft Exchange Server 2019
    • Microsoft Exchange Server 2013 (DAG)
    • Microsoft Exchange Server 2016 (DAG)
    • Microsoft Exchange Server 2019 (DAG)
  • Enter the hostname of Exchange server, the username and password of the Windows user account used for backup.
  • Check the “Access the Internet through proxy” if required, click the Test button to verify the login details, then click Next to proceed.

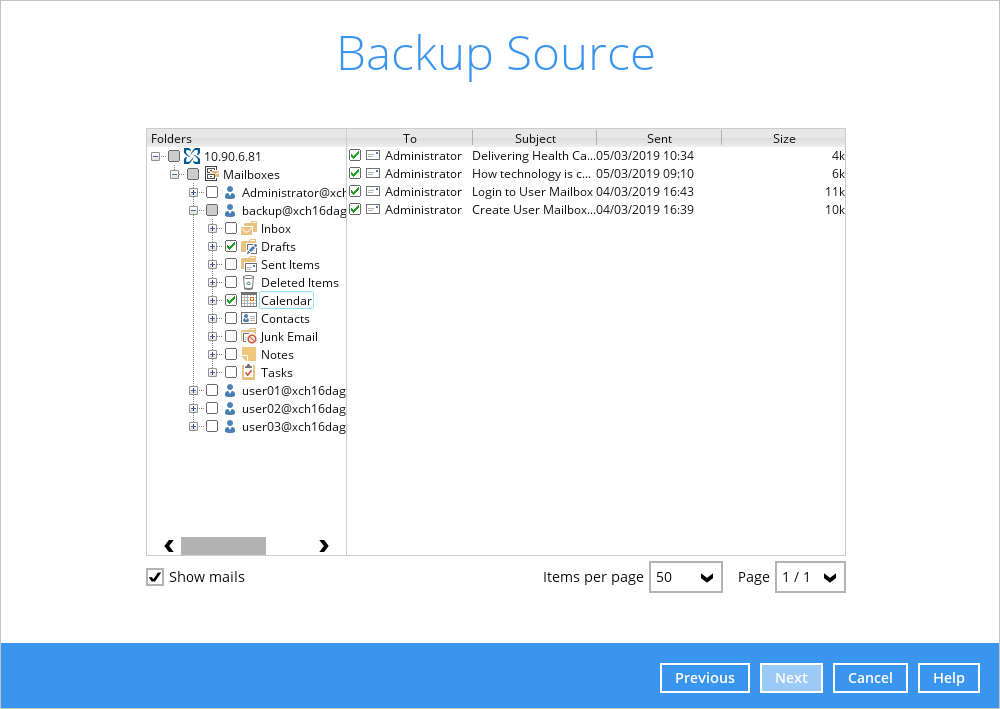

5.1.4. In the Backup Source menu, select the mailboxes or public folders for backup. You can click to expand the mailbox or public folder to select which mail folder to back up. You can also click Show mails to select individual mail to back up. Click Next to proceed when you are done.

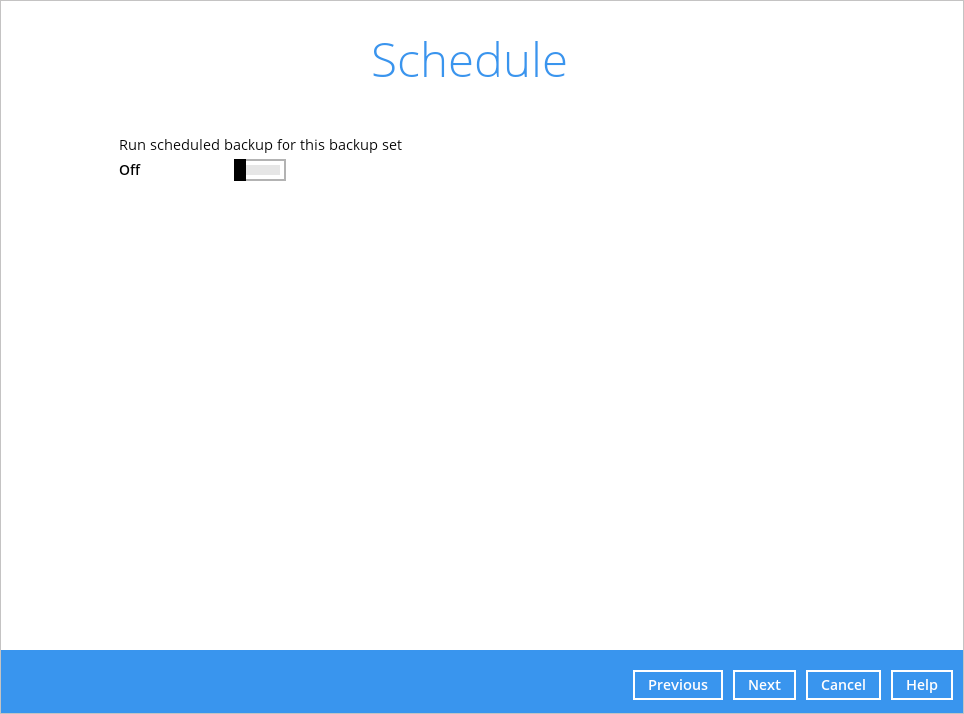

5.1.5. In the Schedule menu, you can configure a backup schedule for backup job to run automatically at your specified time interval. By default, the Run scheduled backup for this backup set option is disabled. Enable it then click the “+” icon next to Add new schedule. Click Next to proceed when you are done setting.

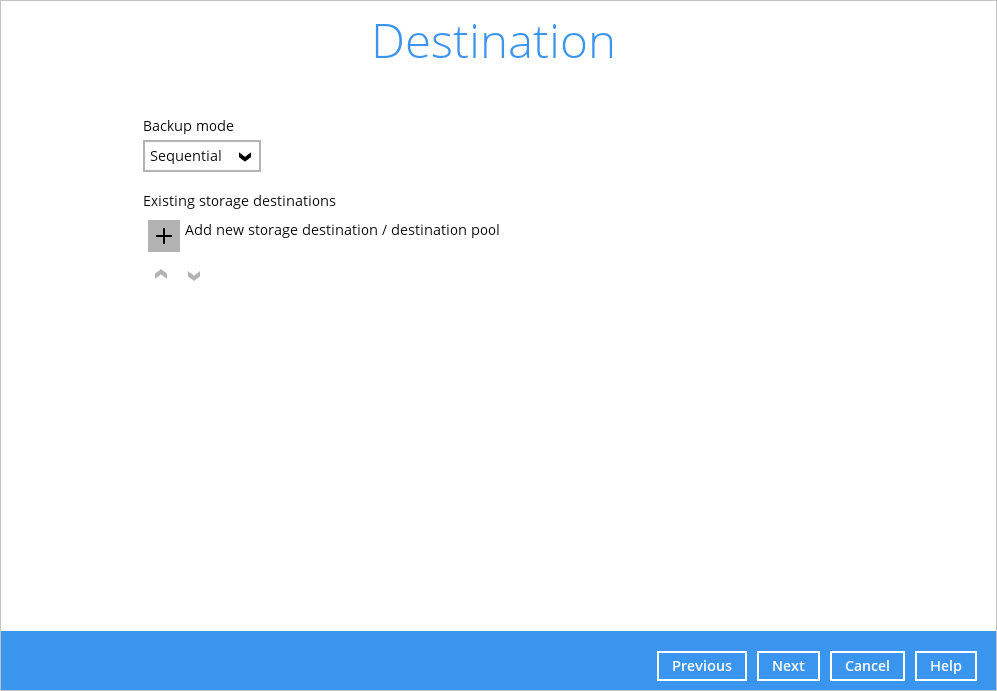

5.1.6. In the Destination menu, select a backup destination where the backup mail will be stored. Click the “+” icon next to Add new storage destination / destination pool.

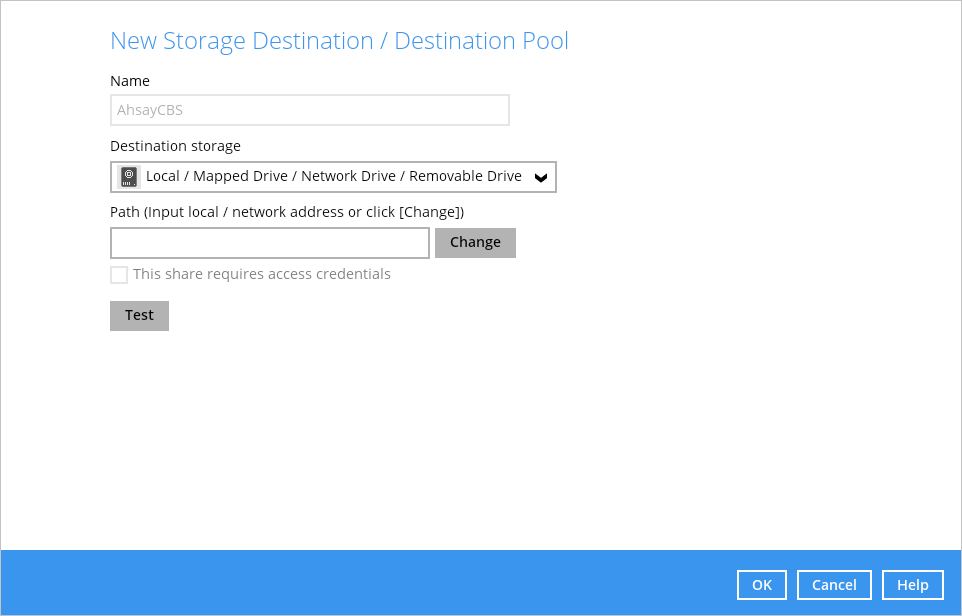

5.1.7. Select the destination storage, then click OK to proceed.

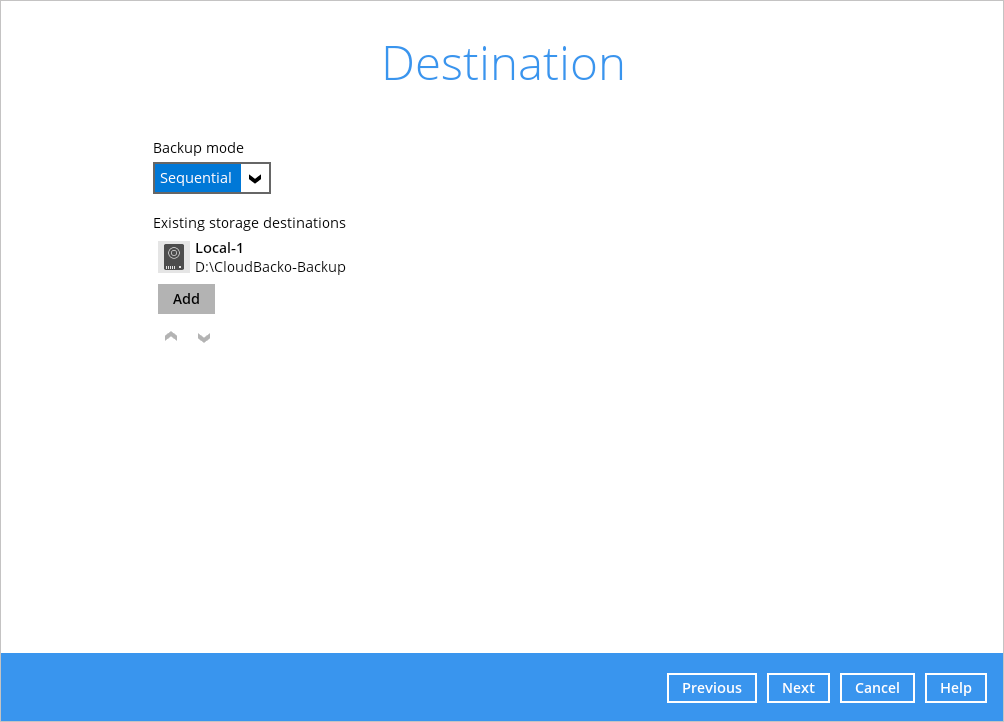

5.1.8. Click Next on the Destination menu page to proceed.

5.1.9. In the Encryption window, the default Encrypt Backup Data option is enabled with an encryption key preset by the system which provides the most secure protection.

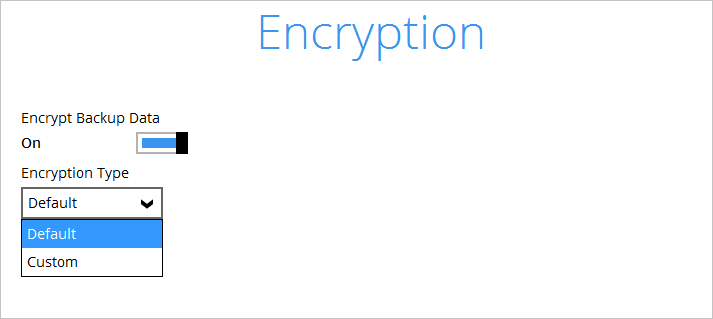

5.1.10. You can choose from one of the following three Encryption Type options:

  • Default – an encryption key with 44 alpha numeric characters will be randomly generated by the system

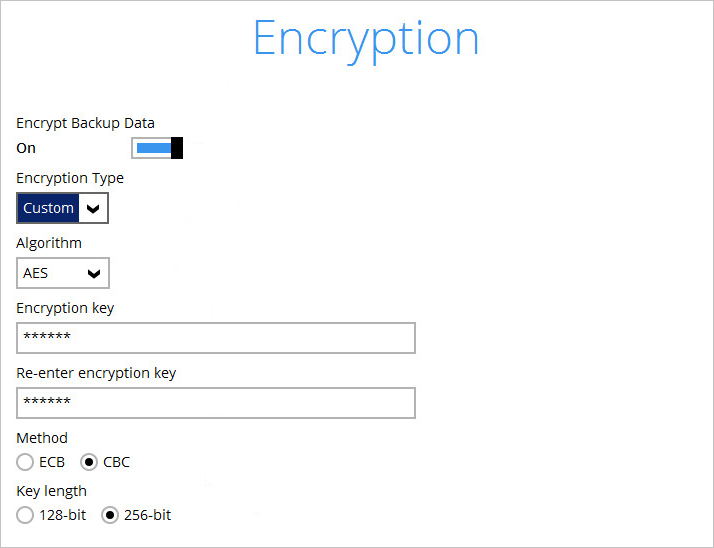

  • Custom – you can customize your encryption key, where you can set your own algorithm, encryption key, method and key length.

For best practice on managing your encryption key, refer to the following KB article: Best Practices for Managing Encryption Key on CloudBacko Pro or AhsayACB

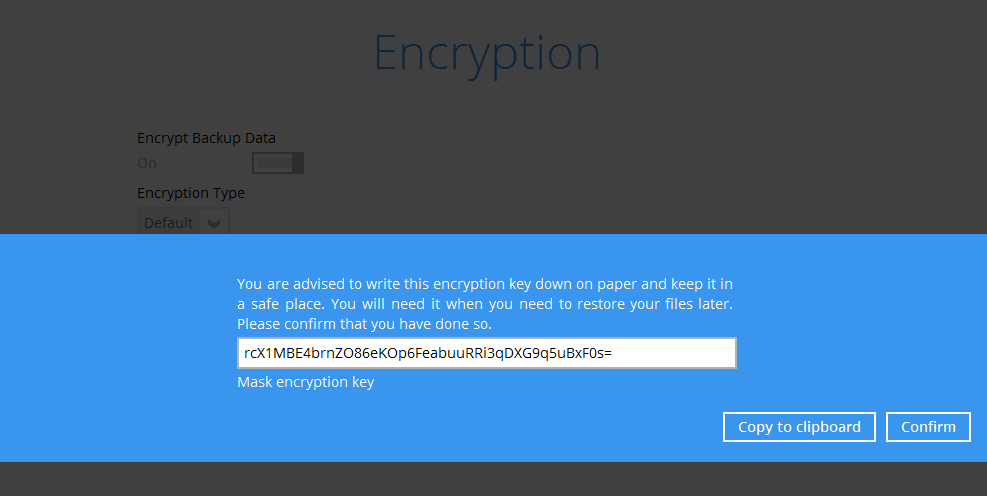

5.1.11. If you have enabled the Encryption Key feature in the previous step, the following pop-up window shows, no matter which encryption type you have selected.

The pop-up window has the following three options to choose from:

  • Unmask encryption key – The encryption key is masked by default. Click this option to show the encryption key.
  • Copy to clipboard – Click to copy the encryption key, then you can paste it in another location of your choice.
  • Confirm – Click to exit this pop-up window and proceed to the next step

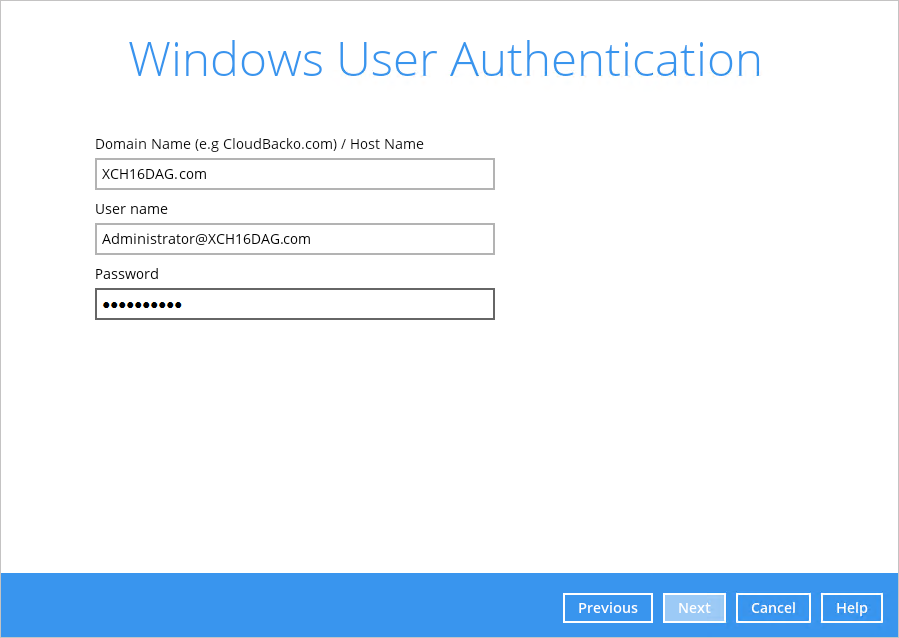

5.1.12. Enter the Windows login credentials for user authentication. Click Next to proceed. The User name should be entered in the following format “user@hostname”, i.e. administrator@ahsay.com

The Windows User Authentication interface will show only if scheduled backup is enabled and set successfully.

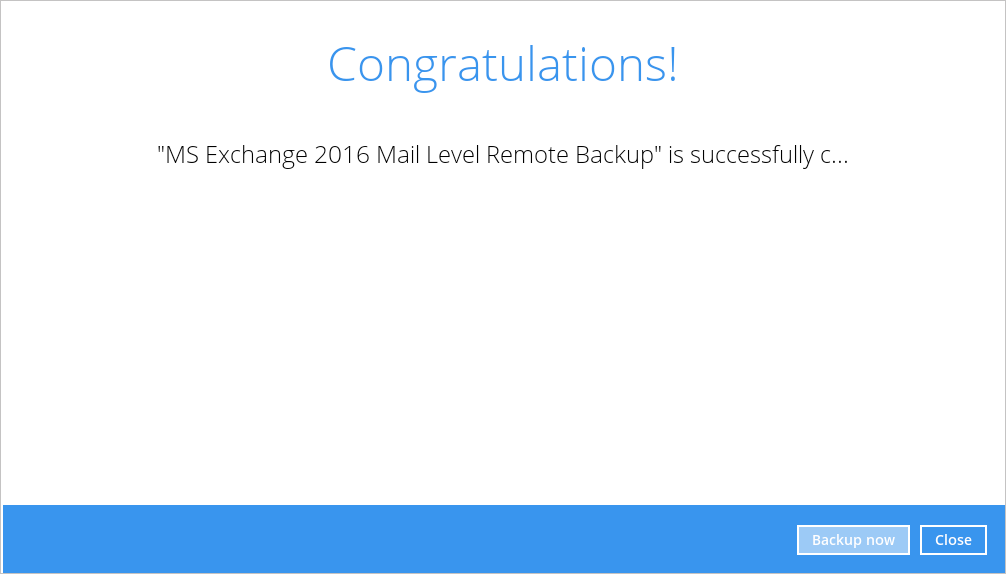

5.1.13. The following screen shows when the new backup set is created successfully.

5.1.14. Click Backup now to start a backup immediately, or you can run a backup job later by following the instructions in Run Mail Level Backup Job

5.2 Run Mail Level Backup Job

Below is the steps of backup process.

5.2.1. Log in to CloudBacko Pro.

5.2.2. Click the Backup icon on the main interface of CloudBacko Pro.

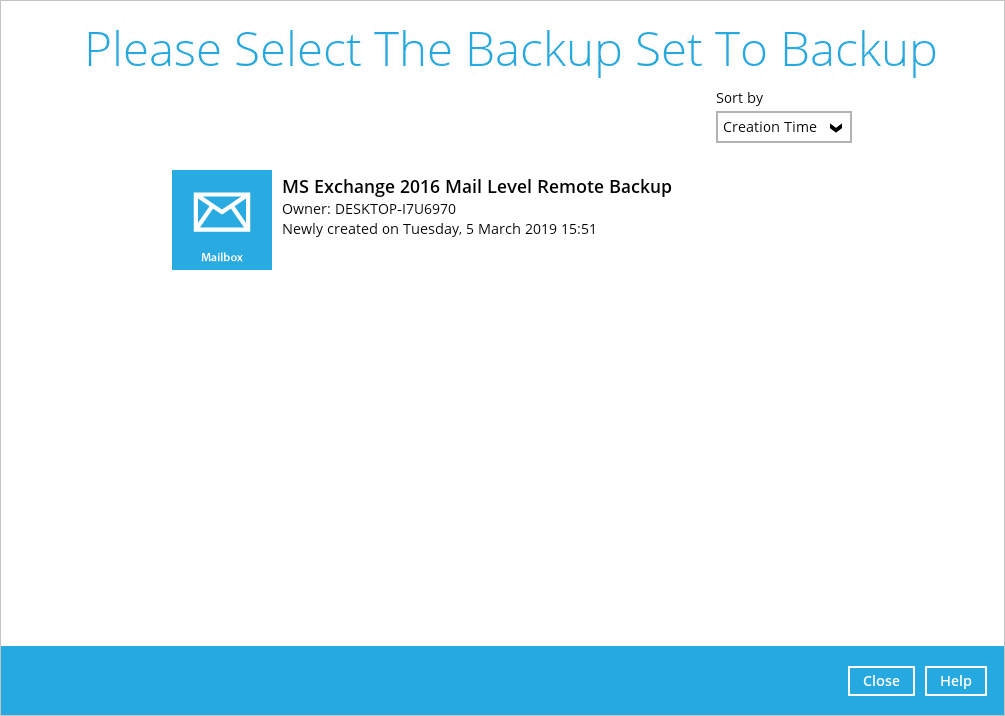

5.2.3. Select the backup set which you would like to start a backup for.

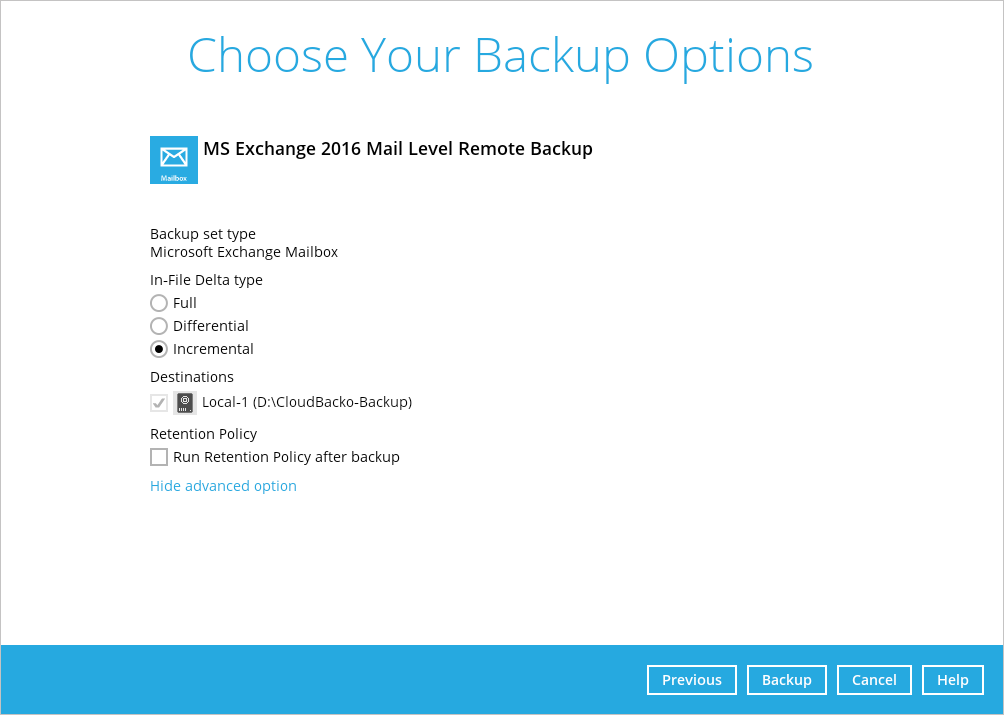

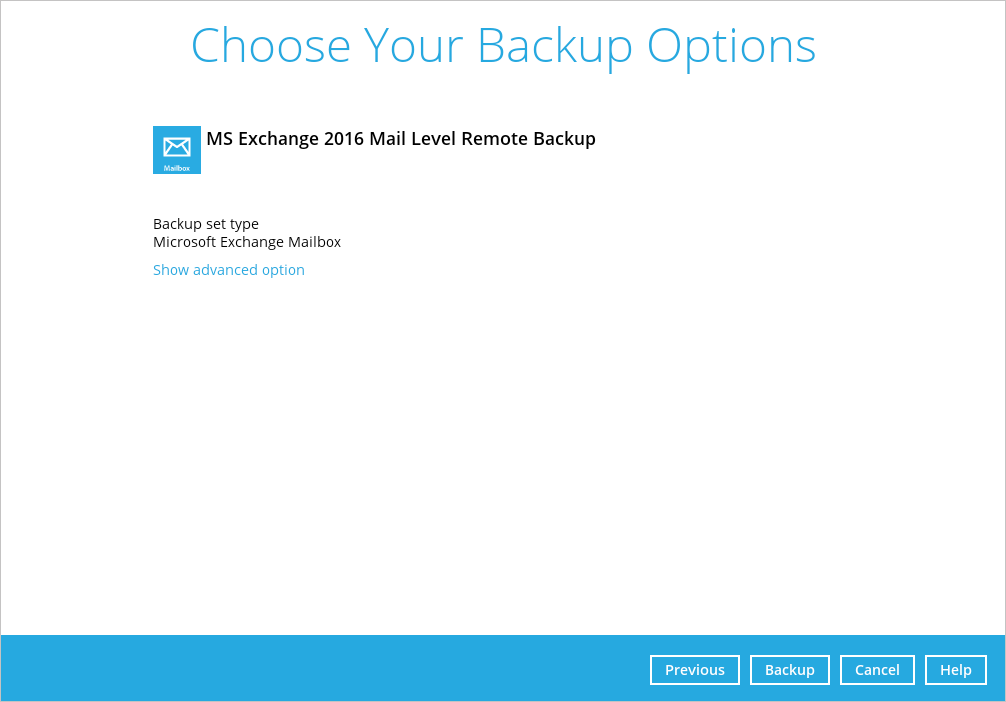

If you would like to modify the In-File Delta type, Destinations and Retention Policy settings, click Show advanced option.

5.2.4. Click Backup to start the backup.

5.3 Restore Mail Level Backup

Below are the steps of the restore process.

5.3.1. In the CloudBacko Pro main interface, click the Restore icon.

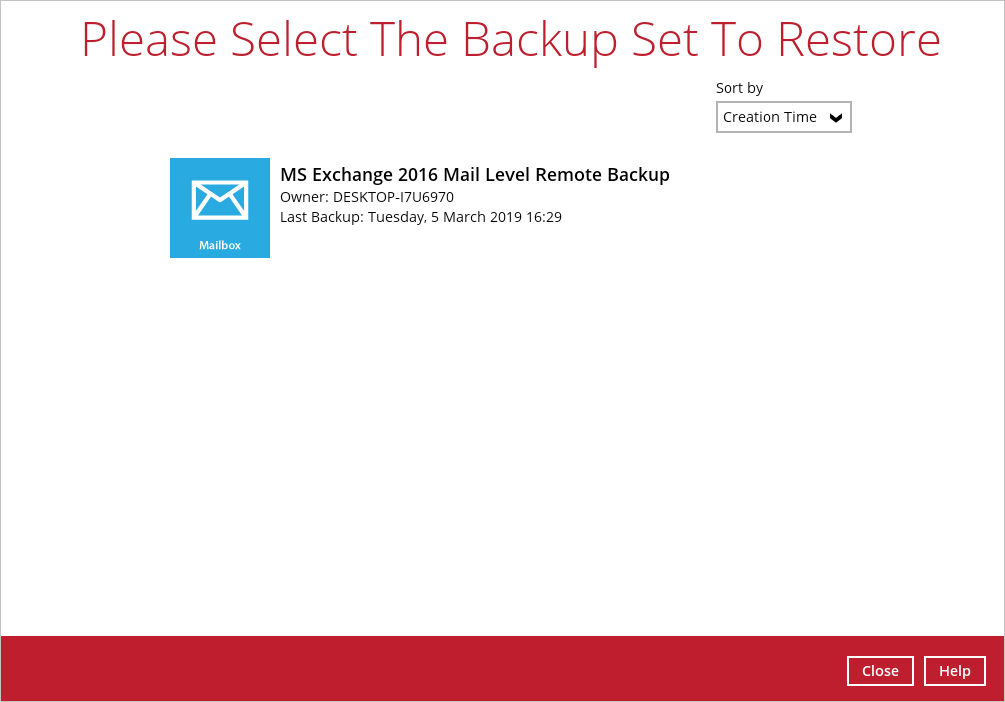

5.3.2. Select the backup set that you would like to restore mail from.

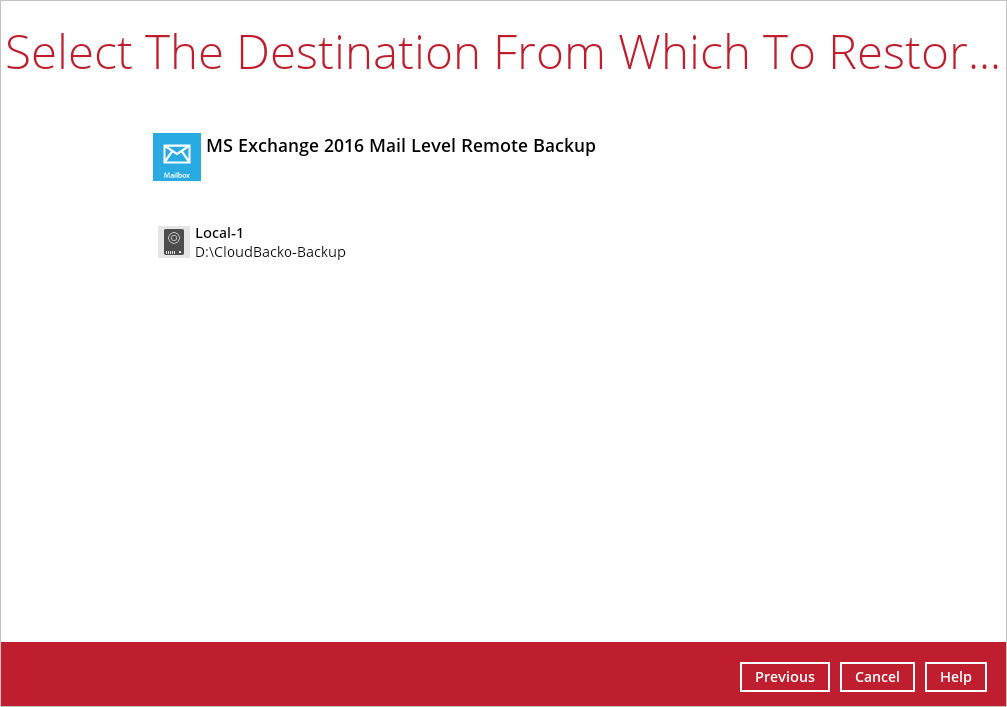

5.3.3. Select the backup destination that contains the mail(s) that you would like to restore.

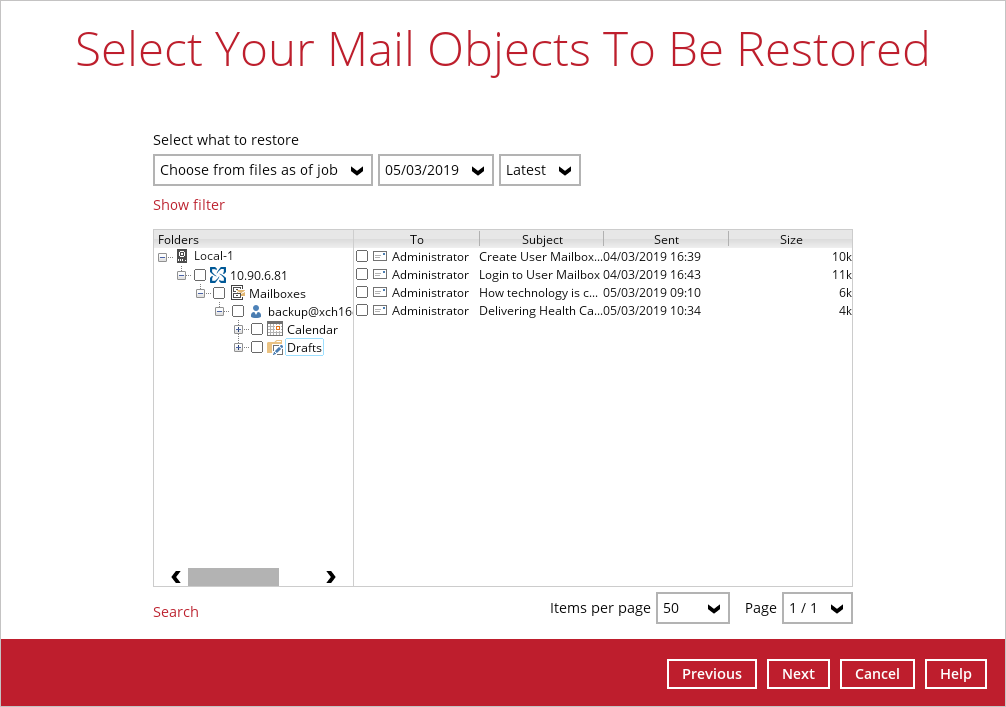

5.3.4. Click to expand the menu tree to select which mailbox to restore. You can also select mail item(s) from a specific backup job or all mail items that you have backed up to restore. Click Next to proceed.

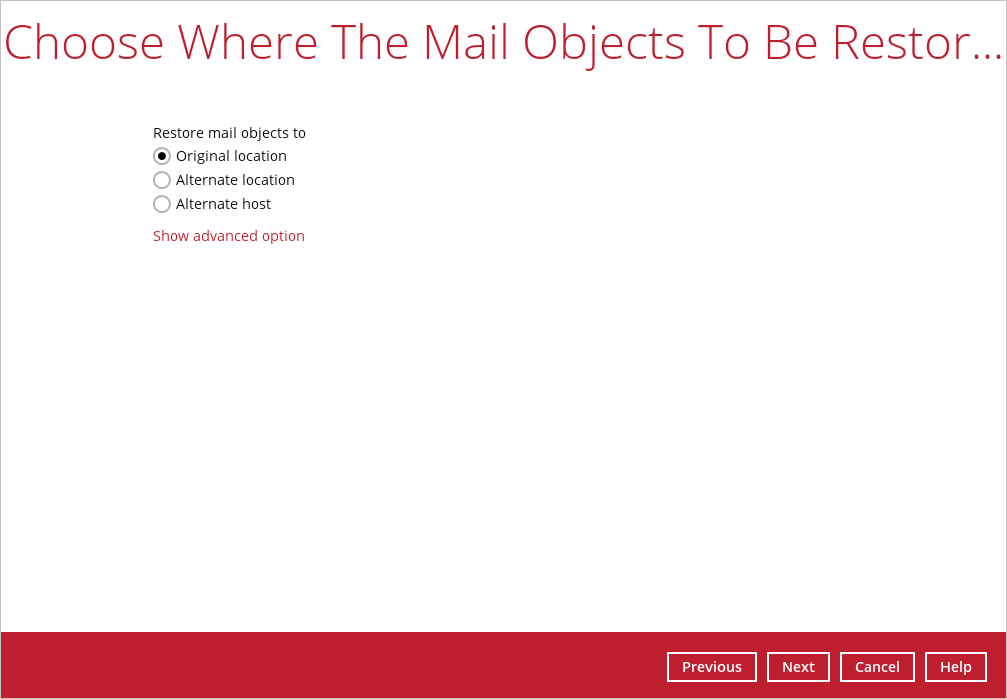

5.3.5. Select to restore the mail to their Original location, Alternate location or to an Alternate host.

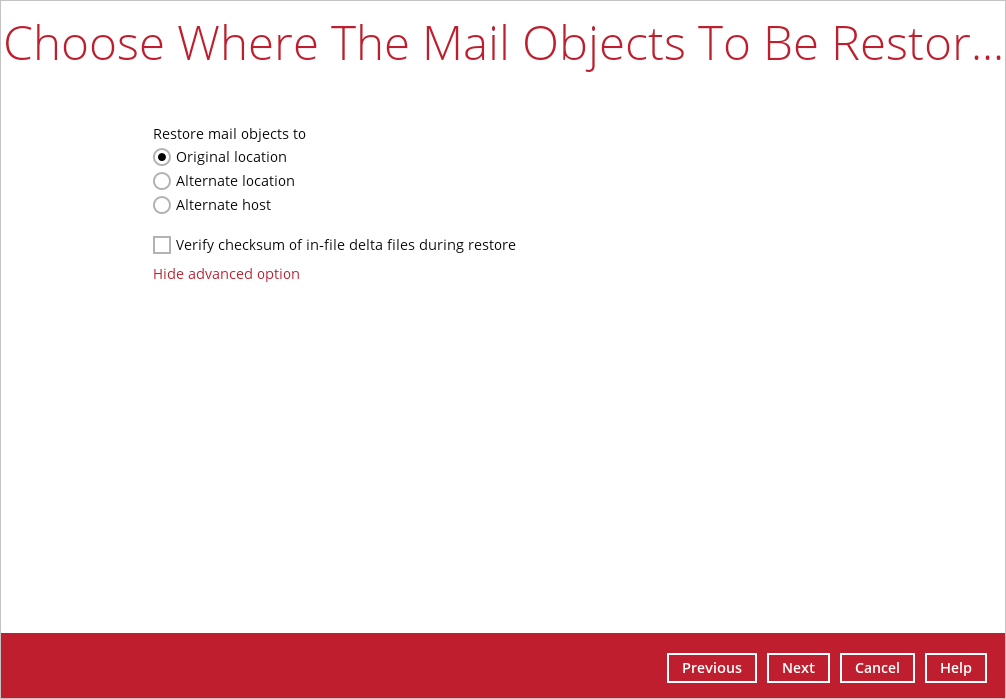

  • Restore to Original Location - Select the Original location option. If you want to modify the Verify checksum of in-file delta files setting, click the Show advanced option. Press Next to proceed.

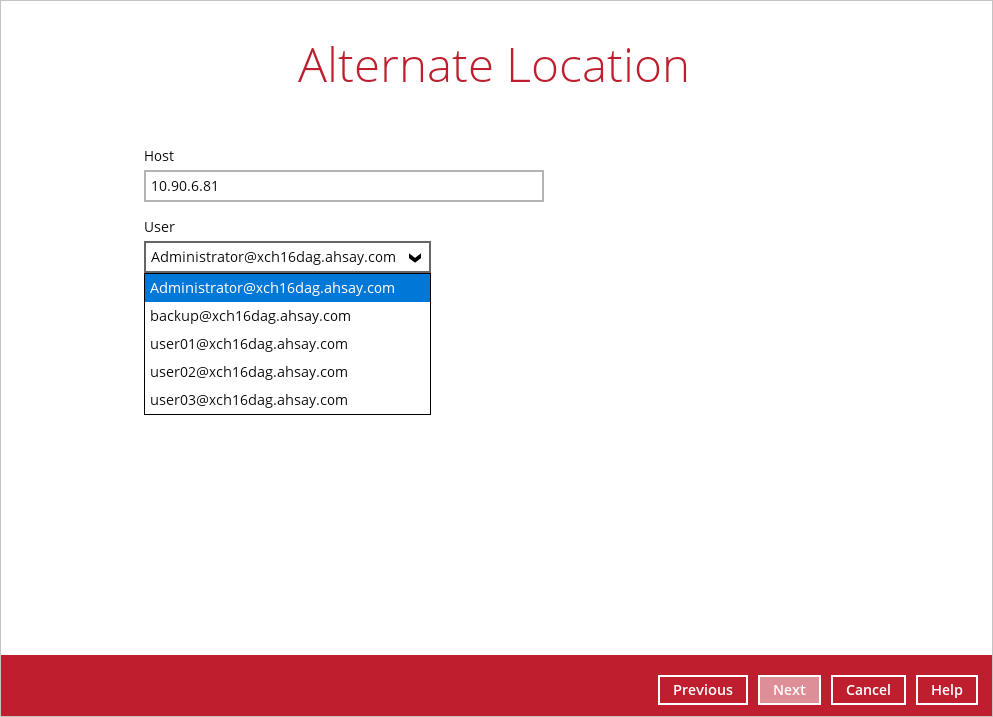

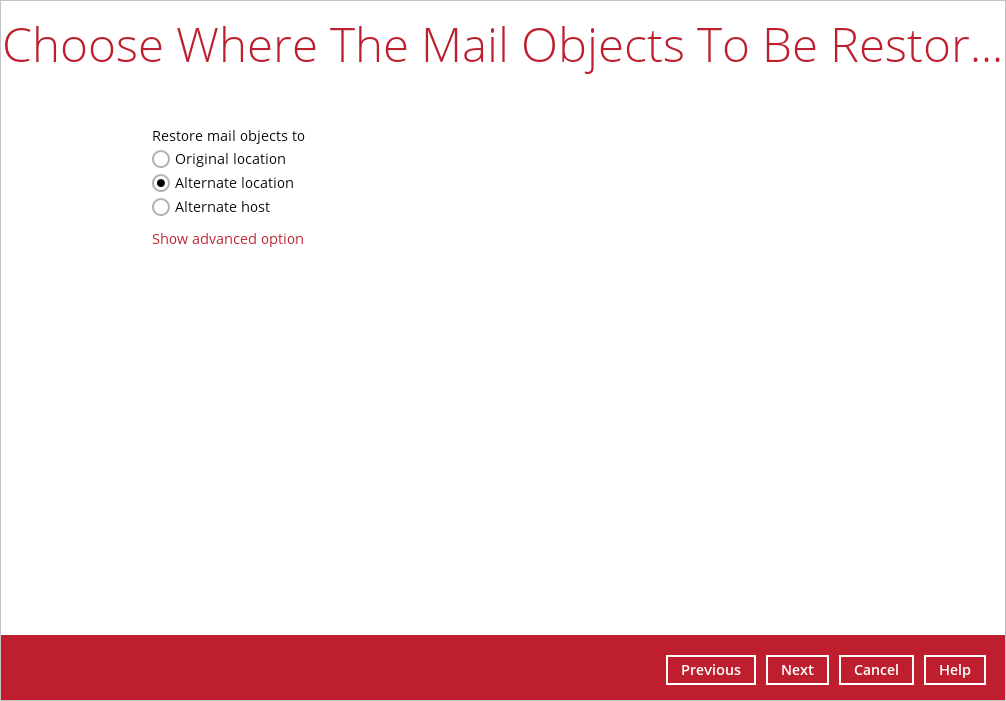

  • Restore to Alternate Location - You can choose to restore mailbox item(s) to another mailbox in the same Exchange server. Select the Alternate location option. If you would like to modify the Verify checksum of in-file delta files setting, click Show advanced option then press Next.

    Select the desired mailbox destination, then press Next to proceed.

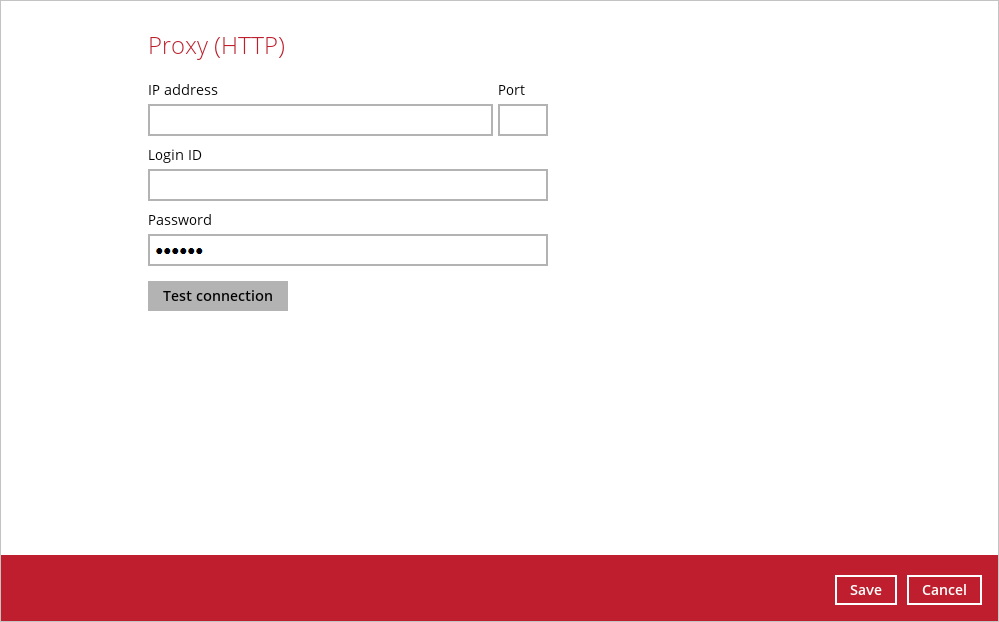

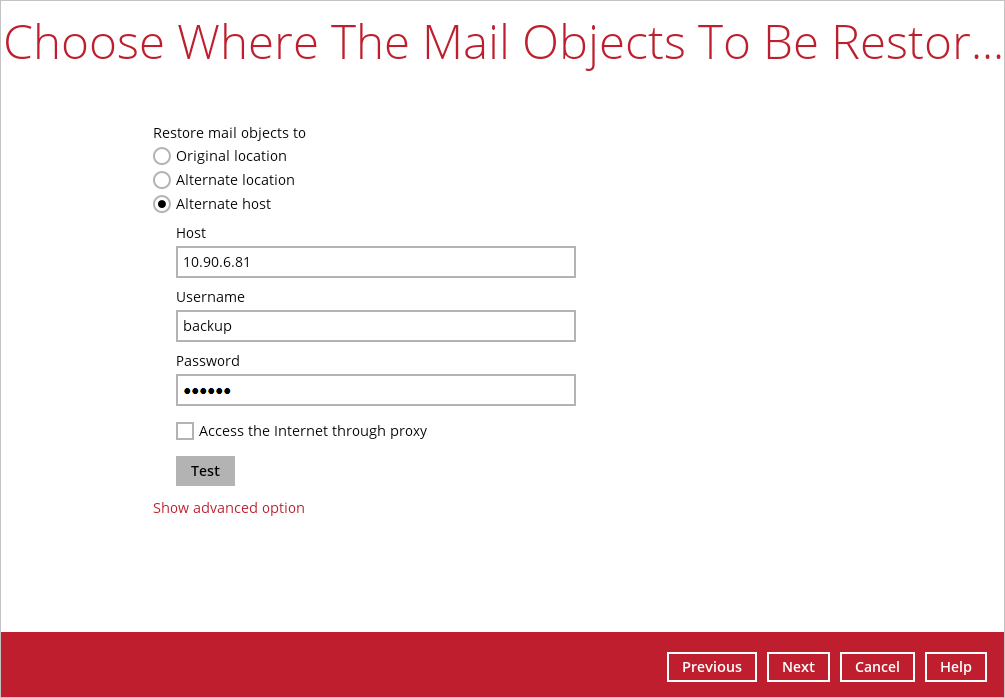

  • Restore to Alternate Host - You can choose to restore mailbox item(s) to another mailbox in a different Exchange server. Select the Alternate host option and enter the host, username and password. If you will access the internet through proxy, check the box beside it and set the configuration for the proxy server and click Save. If you would like to modify the Verify checksum of in-file delta files setting, click Show advanced option.


    Select the desired mailbox destination, then press Next to proceed.

Please refer to the Limitation part to check the limitation of restore process.

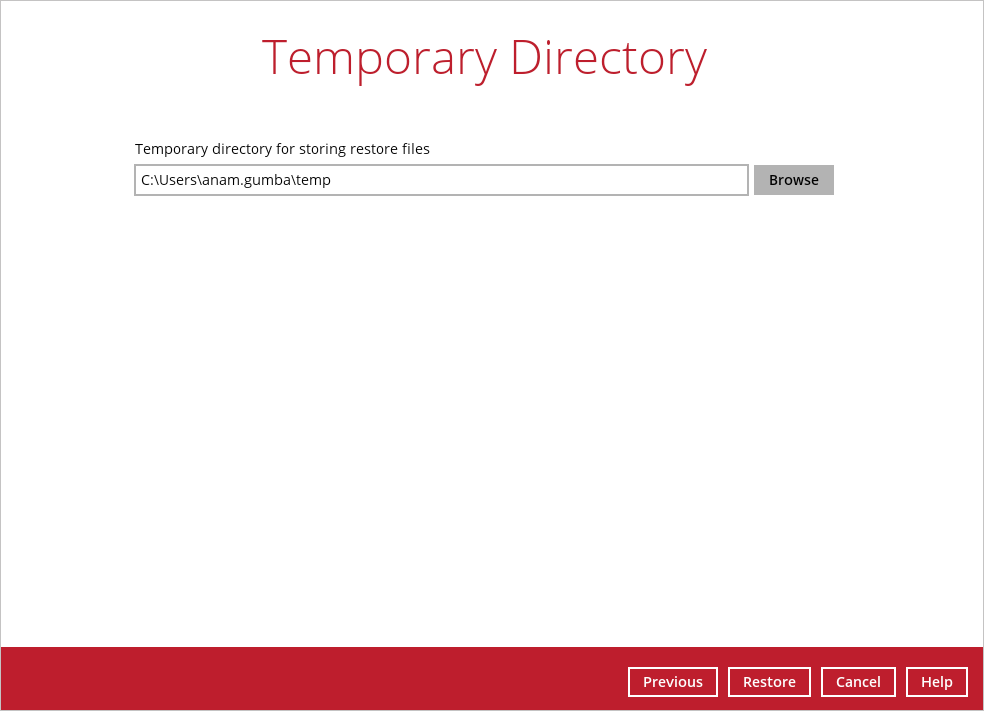

5.3.6. Select the temporary directory for storing temporary files, such as delta files when they are being merged, click Restore to start the restoration.

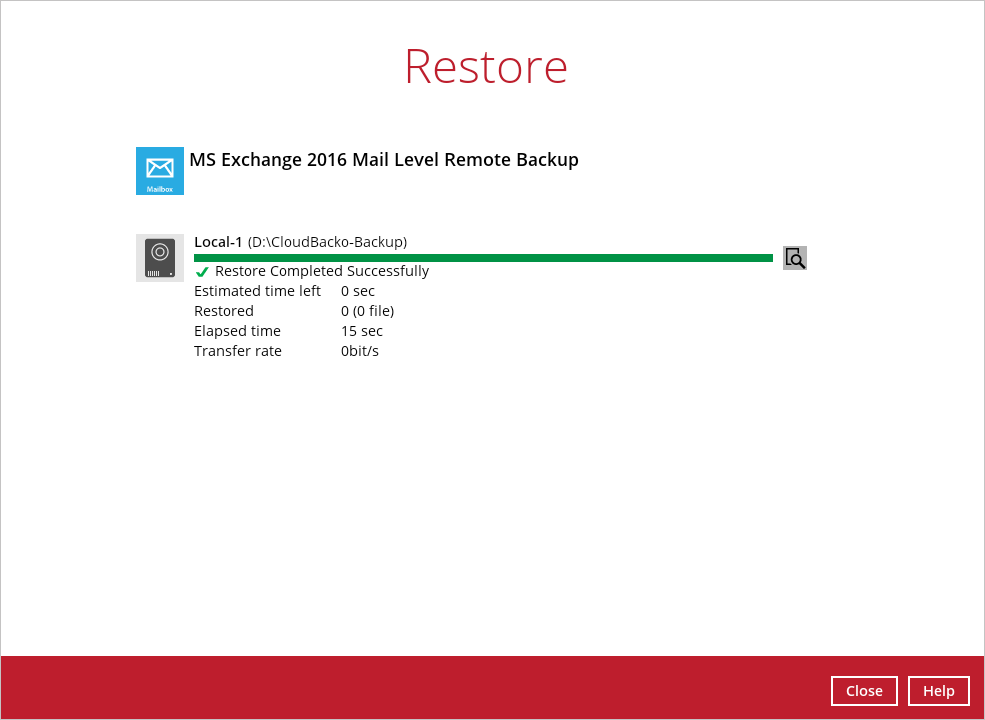

5.3.7. The following screen with the text Restore Completed Successfully shows when the restoration is completed.
